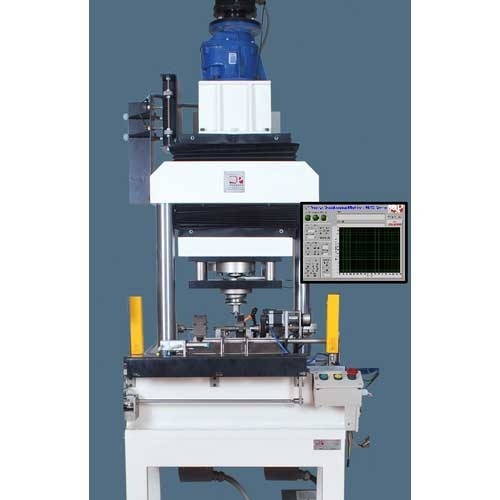

Shaft Straightening Machine

Product Description

We offer an impressive variety of Shaft Straightening Machine designed to correct the distortions common to manufacturing. The applications vary from large construction equipment shafts to precision office equipment, such as surgical drill bits. Our machine is successfully used to straighten camshafts, armatures, oval rings, and crank shafts. It is available to be tailored to customers' exact needs. Our engineers have reached exceptional proficiency in this area, meeting the most demanding client's requirements. Clients can avail this Shaft Straightening Machine from us at marginal rates.


Shaft Straighteners / Shaft Straightening Machine

• Shaft Straightener / Shaft Straightening Machine Used for straightening of shafts, racks and pinions distorted during heat treatment.
• Measurement and Straightening can be done on basis of

       - Plain Dia

       - Gear / Pinion PCD

       - Steering Rack Type (with some shaft portion flat)

• Shaft lengths 70 mm to 1 m
• Final straightness as low as 15 microns TIR (depending on length and material)
• Control System PLC+PC based
• Integrated Load Cell for Load Monitoring
• Optional Acoustic Emmission based Crack Detection during straightening

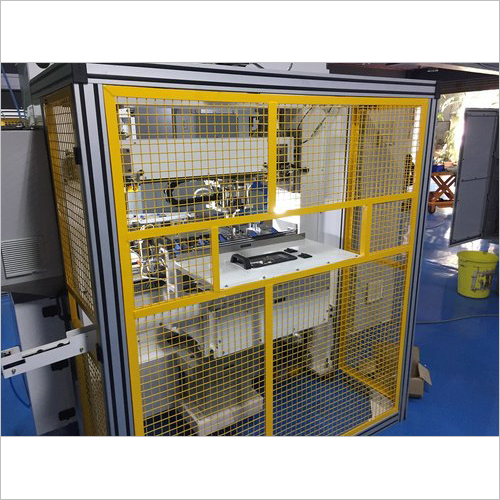

• Fully Automated Shaft Straighteners / Pinion Straighteners are also offered
